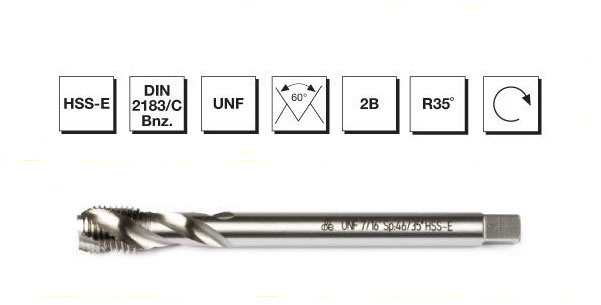

HSS – E DIN 2183/C USA İnce Vidalı Helis Kanallı Makina Kılavuzu – UNF

SKU: 10170 Categories: , , ,

Description

Ürün Kodu d1 UNF P adım G/Inch L1 (mm) L2 (mm) d2 (mm) k (h12) (mm)
B00105990014 1/4″ 28 80 12 4,5 3,4
B00105990015 3/8″ 24 100 16 7,0 5,5
B00105990023 7/16″ 20 100 16 8,0 6,2
B00105990024 1/2″ 20 110 20 9,0 7,0
B00105990025 9/16″ 18 110 22 11,0 9,0
B00105990026 5/8″ 18 110 22 12,0 9,0
B00105990032 3/4″ 16 125 22 14,0 11,0
B00105990038 5/16″ 24 90 14 6,0 4,9
B00105990051 7/8″ 14 140 28 18 14.5
B00105990078 1″ 12 160 32 20 16
